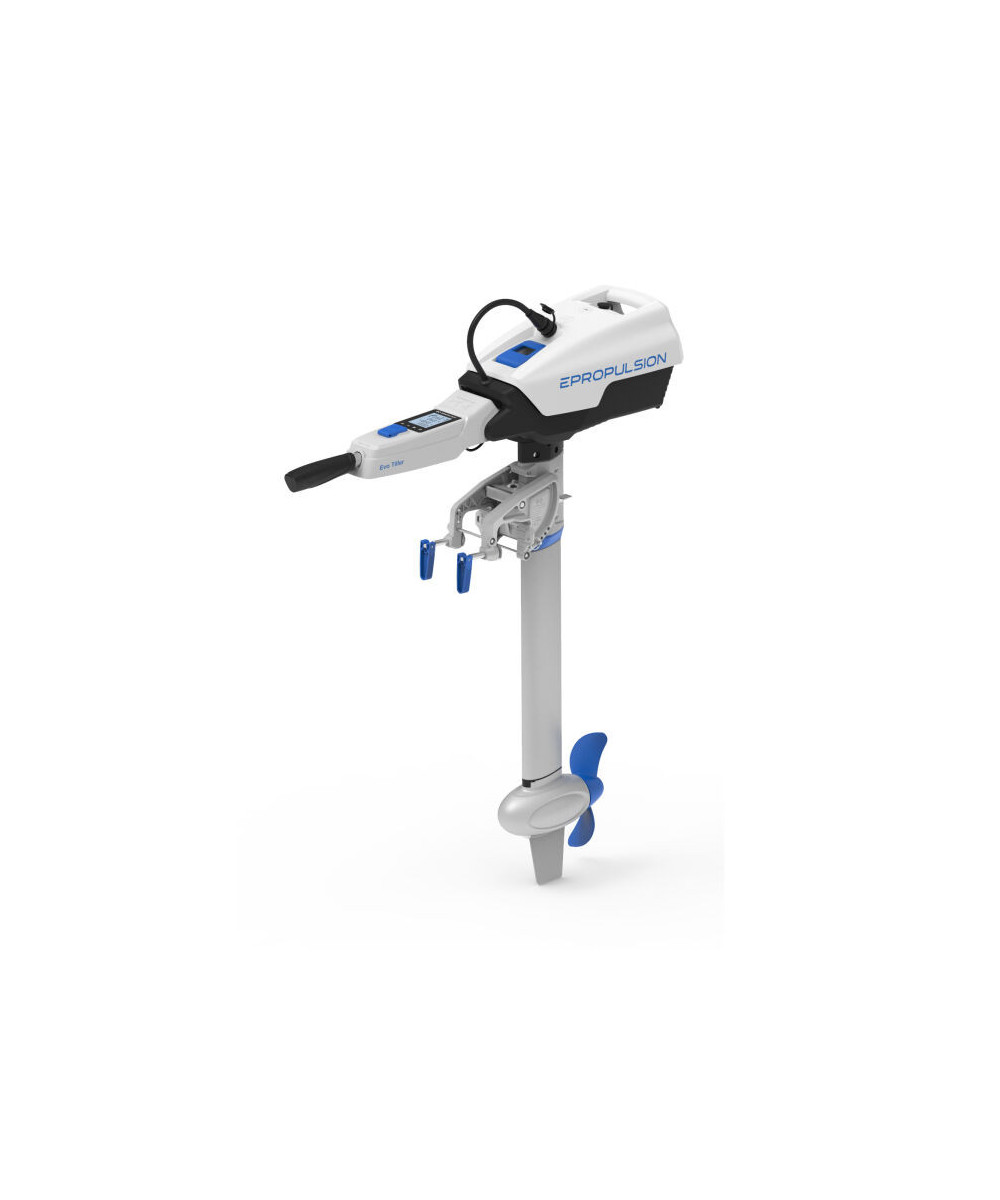

Epropulsion Spirit 1.0 Evo Electric Motor - Hydrogeneration (battery self-charging)

Engine including Declaration of power.

Hydrogeneration (battery charging in navigation) for sustainable sailing experiences

As soon as the engine is idling and running, the function is automatically active. When sailing,

the propeller starts spinning due to the water current. Starting from a speed of 3 knots (for example on the

Spirit 1.0 Evo) the engine begins to generate enough power to charge the battery.

Charging power increases to a speed of 10 knots. Then the safety function turns off the charge for

protect the motor electronics from overload.

Spirit 1.0 EVO is the best-selling ePropulsion series. It is designed for portability with a weight of only 18 kg, including the 1276 Wh Li-ion battery. Despite its compact size, the Spirit delivers an impressive 3 HP boost which is ideal for all light uses.

The Spirit 1.0 EVO is an engine that changes the cards on the table. You no longer have to waste your time with your request. Plus, you'll never have to winterize your outboard. Spend less time working on your outboard and a lot more time enjoying boating.

The Spirit 1.0 EVO is virtually silent with a direct motor drive. There is no gearbox which means less friction inside the motor

Floating Battery If you remove the battery to bring it to and from the boat, there is a possibility that it will fall into the water. That's why the Spirit Plus battery floats. You will never lose a battery in the sea.

Input power: 1 kw

Equivalent power: 3 hp

Battery capacity: 1276 wh

Motor weight: 11.3 kg

Battery weight: 8.7 kg

Shank Length: Extra Short: 52.5cm / Short: 62.5cm / Long: 75cm

Battery life: 800 cycles at 80% DOD

Trim / Tilt angle: 0 °, 7 °, 14 °, 21 ° / 75 °

Propeller: 28 × 14.7cm / 11 "× 5.8" 2-blade composite

Compatibility with third party batteries: yes

Including battery charger

Performance

- 35 W (minimum) - speed 3.5 km / h - battery life approx. 36h

- 125 w - speed 5.6 km / h - battery life approx. 10h

- 500 w (inermedium) - speed 8.5 km / h - battery life approx. 2.3h

- 1000 w (max) - speed 10 km / h - battery life approx. 1.15h

(Performance data is based on using a 3.60m aluminum boat with one person and spirit 1.0 battery on board, on calm water / lake.)

With a large 1276Wh battery, the Spirit 1.0 Evo offers 50% more range than its main competitor. Competitor / 915 Wh Spirit 1.0 Evo / 1276 Wh
